Duct Board Sheet 1-1/2″ X 48″ X 120″

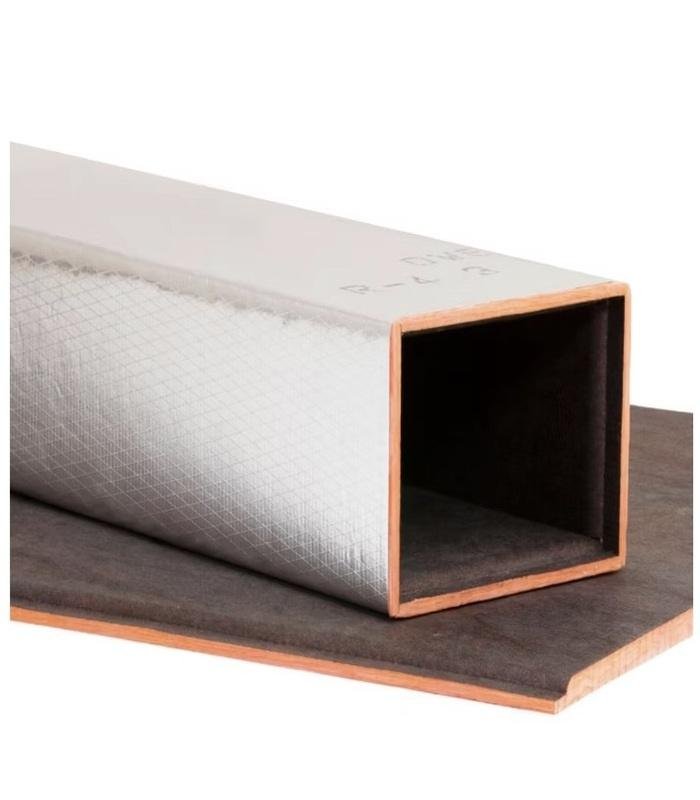

Customized Size. T0800 duct board Sheet 1-1/2″ X 48″ X 120″. Owens Corning™ QuietR® Duct Board is a rigid, resin bonded fibrous glass board with a tough, damage-resistant, flame retardant, reinforced aluminum foil (FRK) facing. When fabricated into duct systems, it combines excellent thermal and acoustical insulating properties with substantially airtight transmission of air when all joints are sealed with UL 181A listed closures. QuietR® Duct Board features a durable mat air stream surface that isolates the glass fiber substrate from the airstream and inhibits penetration of the insulation by dirt, dust and other pollutants. This durable air stream surface makes it easy to clean the duct system using methods and equipment described in North American Insulation Manufacturers Association (NAIMA) Publication AH122, Cleaning Fibrous Glass Insulated Duct Systems, Recommended Practice. Key Features:

• Absorbs noise and reduces popping noises caused by expansion, contraction and vibration.
• Assured thermal R-value performance.
• Bacterial and fungal growth resistant with an EPA registered biocide that protects the air stream surface from microbial growth.
• Thermal/acoustical insulation board plus jacket forms a single component duct system, thus reducing inspection time.
• Lightweight boards are easier to transport and handle than insulated sheet metal ducts.
• Virtually eliminates air leakage thus saving energy and removing the need for system overdesign

  Weight	17.68
  ERP ID	187125
  Brand	Owens Corning
  Composition	Fiberglass
  Country of Origin	Varies
  Cubic Measurement	3.3333
  Dimensional Weight	42
  Flame/Smoke Rating	<25<50
  Green Certification or Other Recognition	Yes
  Height	1
  Length	120
  Prop 65	Yes
  R-Value	R6.5
  Size	1 1/2″ x 48″ x 120″
  Thickness	1 1/2″
  UL Recognized	No
  UOM	EA
  Width	48
