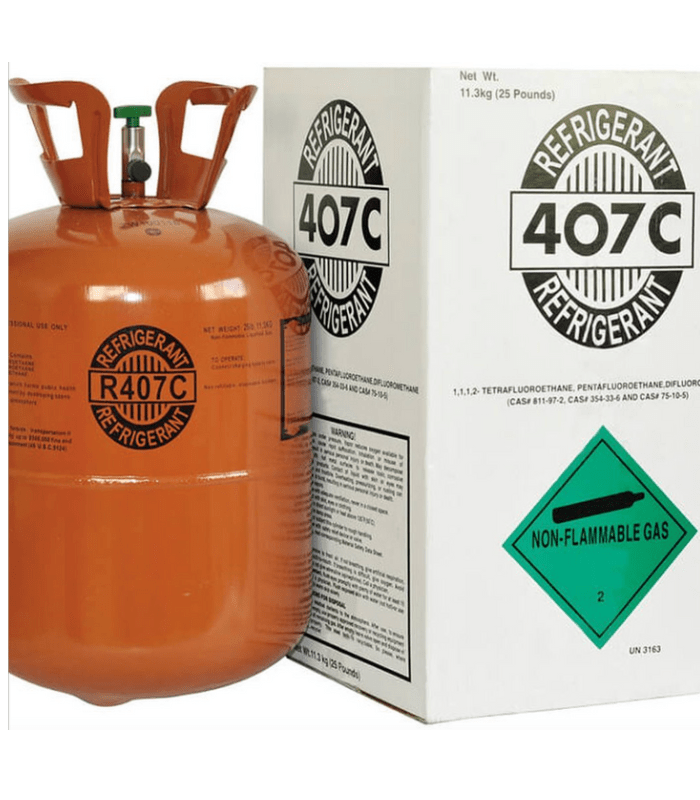

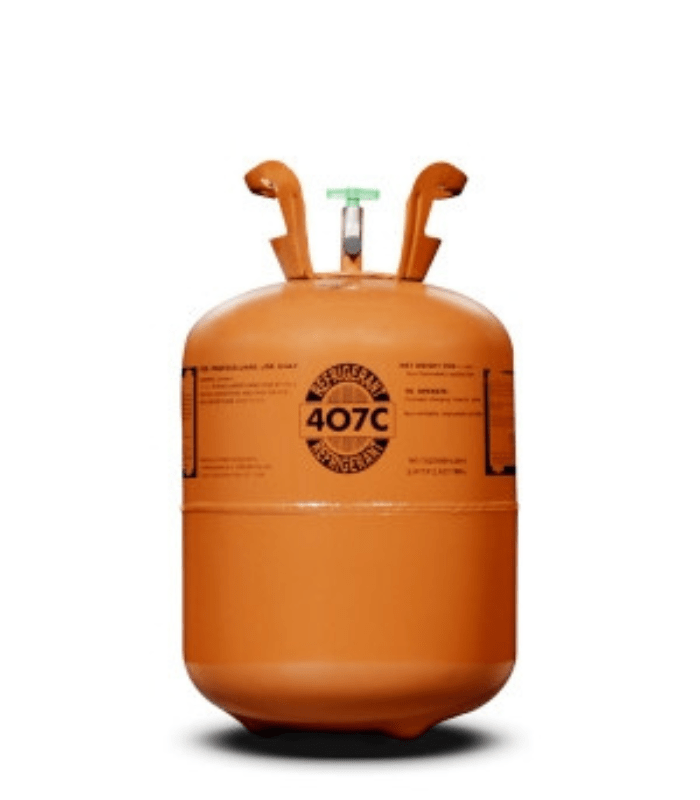

407c Refrigerant 25 pounds cylinder
- EPA certification required
- R22 replacement refrigerant
- Use with POE oil
- Non-ozone depleting
- Retrofitting voids most manufacturers’ warranties
- Be sure to label your unit with retrofit labels
- 25 lbs.
Category: Refrigerant
Description
- R407C can be used to COMPLETELY replace R-22 refrigerant in new or existing R-22 residential and commercial air conditioning systems as well as non-flooded evaporator chillers. Cannot be added to R-22 unless fully evacuated and recharged with 407C.
- R-407C is a non-ozone depleting, zeotropic blend of HFC refrigerants R-32, R-125, and R-134a, and has been formulated to match the properties of R-22 closely in air conditioning applications.
- R-407C is completely immiscible with mineral oil and will require a complete oil change to POE when retrofitting an R-22 installation.
- Like other R22 retrofits, R-407C is a high glide blend and is therefore typically not recommended for use in a system with a flooded evaporator.
Item | Specification |
---|---|
ASHRAE # | R-407C |
Class | HFC |
Refrigerant Type | Blend |
Typical Lubricant | POE |
Substitutes | HCFC-22 |
Contains | HFC-32 (23%), HFC-125 (25%), HFC-134a (52%) |
Glide | High |
Notes | Commercial Refrigeration: Reasonable performance match to R-22 in medium temperature refrigeration. Lower capacity in low temperature refrigeration systems. Air Conditioning and Heat Pumps: Best retrofit alternative to R-22. Close performance match with slightly higher operating pressures. |
Physical Properties
Property | Value |
---|---|
Chemical Name | Difluoromethane, Pentafluoroethane, Tetrafluoroethane |
Chemical Notation | CH 2F, CF3CHF2, CF3CH2F |
Molecular Weight | 86.2 |
Boiling Point @ 1 Atm, (°F) | -46.5 |
Freezing Point @ 1 Atm, (°F) | -256 |
Critical Temperature (°F) (ASTM D-1321) | 186.86 |
Critical Pressure* (psia) | 671.49 |
Saturated Liquid Density @ 86°F, (lb/ft 3) | 69.6 |
Specific Heat of Liquid @ 86°F, (Btu/lb•°F) | 0.38 |
Specific Heat of Vapor @ Constant Pressure* (Cp), @ 86° and 1 Atm, (Btu/lb•°F) | 0.18 |
Flammable range, %vol. in air (Based on ASHRAE Standard 34 with Match Ignition) | None |
ANSI/ASHRAE Standard 34-1992 Safety Group Classification | A1 |
