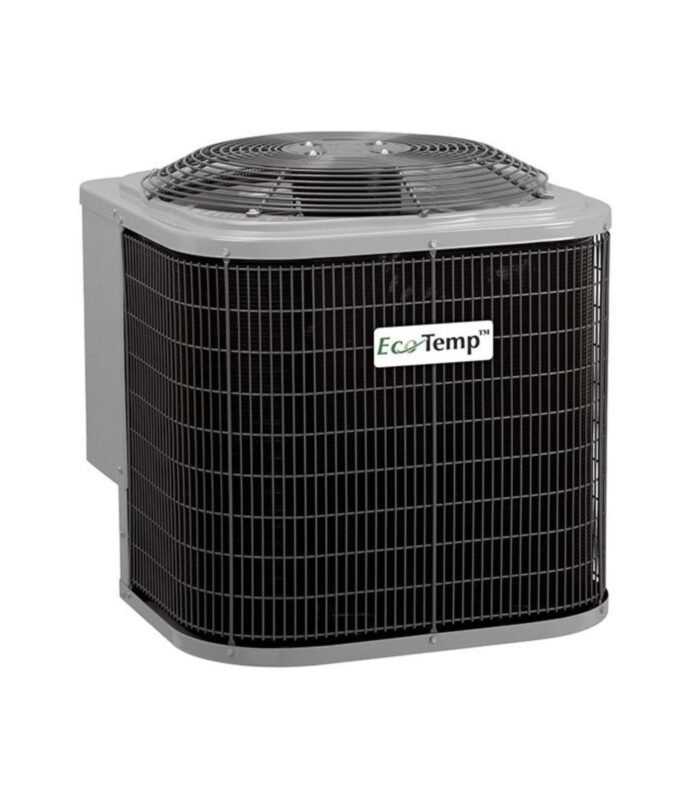

2.5 Ton Eco Temp 14.3 Seer2 Straight Cool 454b Condenser
| Brand |
Eco Temp |
|---|
| Weight | 148 |
|---|---|
| AHRI – Usage | Outdoor |
| Brand | Eco Temp |
| CBU – Compressor Bearing Unit | Yes |
| CFM | 4,900 |
| Condenser Motor HP | 1/10 |
| Condenser Motor RPM | 825 |
| Condenser Motor Speeds | 1 |
| Condenser Motor Type | CS (Capacitor Start) |
| Cooling Capacity | 30,000 |
| Cycle/Hertz | 60 Hz |
| EER2 | 11.2-14.5 |
| Energy Star Rated | Yes |
| Equipment Type | Straight Cool |
| Full Load Amps | 0.6 |
| Height | 38.4375 |
| Inverter | No |
| Length | 31.2 |
| Liquid Line Fitting Type | Sweat or Braze |
| Liquid Line Size (OD) | 3/8″ |
| Locked Rotor Amps (LRA) | 75.6 |
| Maximum Piping Length | 250′ |
| Metering Device | TXV/TEV – Thermostatic Expansion Valve |
| OPT Code | 1PW5A5S30AKAWA |
| Phase | Single |
| Product Family | W5A5S |
| Prop 65 | Yes |
| Rated Load Amps (RLA) | 12.7 |
| Refrigerant | R-454B |
| SEER2 | 14.3 |
| Sound Level (dBA) | 75 |
| Suction Line Fitting Type | Sweat or Braze |
| Suction Line Size (OD) | 3/4″ |
| Tonnage | 2.5 |
| UOM | EA |
| UPC | See Optical |
| Voltage | 208-230 VAC |
| Width | 31.2 |
| Maximum Overcurrent Protection (MOCP) | 25 |
| Minimum Circuit Ampacity (MCA) | 16.5 |
| Compressor Type | Scroll |
| Country of Origin | MEX |
| Substantial Commodity | Steel; Copper; Aluminum |
| Condenser Fan Motor Qty | 1 |
| Condenser Fan Discharge | Vertical |
| Stages Cooling | 1 |
| Approvals | UL Listed |
| Condenser Coil Fins per Inch (FPI) | 25 |
Eco Temp air conditioning and heating is a business offering HVAC equipment, we offer equipment such as central AC , heat pump , gas furnace for residential home, package unit for mobile home , roof top unit for light commercial building and mini split for apartment. Our goal is to provide quality solutions at fair prices to ensure that your home or business stays comfortable year round.
